Trailer-Mounted Cold Storage Room: -20°C to +5°C Mobile Refrigeration for Global Cold Chain
A fully self-contained, towable cold room engineered by xnair for rapid deployment in agriculture, pharmaceutical logistics, food distribution, and event catering — no civil works required, operational within 2 hours of delivery.
- 10–40 m³ Internal Volume
- -20°C to +5°C Range
- 100mm PU Insulation
- Dual-Voltage Ready
- CE Certified
Technical Specifications
All specifications below reflect the standard production configuration. Custom parameters — including extended temperature ranges down to -35°C, alternative insulation thicknesses, and non-standard door placements — are available on request. The table presents data for the mid-range 20 m³ model as a representative baseline.
| Parameter | Specification | Unit / Options |
|---|---|---|
| Internal Volume | 10 / 20 / 30 / 40 (customizable) | m³ |
| Temperature Range | -20 to +5 (adjustable via digital controller) | °C |
| Insulation Panel | 100mm PU sandwich, 0.022 W/m·K, density 40±2 kg/m³ | 75mm / 120mm optional |
| Refrigeration Capacity | 3–8 (scroll/hermetic compressor, dependent on volume) | kW @ -10°C evaporation |
| Power Supply | 220V/1Ph/50Hz · 380V/3Ph/60Hz · Diesel generator (≥8 kVA) | Auto voltage regulator ±15% |
| Refrigerant | R-449A (GWP 1397) standard; R-290 (GWP 3) optional | Compliant with EU F-Gas Regulation |
| Trailer Chassis | Single axle (≤3.5T GVW) / Tandem axle (≤8T GVW) | Hot-dip galvanized |
| External Dims (20m³) | 4200 × 2200 × 2400 (L×W×H) | mm |
| Internal Dims (20m³) | 3980 × 1980 × 2180 (net after insulation) | mm |
| Door Opening | Rear double-wing, 1800 × 1900 clear opening | Side door optional |
| Floor Load Rating | 800 (uniformly distributed) | kg/m² |
| Ambient Operating Range | -10 to +48 (standard); up to +55 with tropical kit | °C |
Global Adaptability: Engineered for Diverse Climates & Regulatory Environments
The trailer-mounted cold storage room from xnair is purpose-built to operate reliably across the world's most demanding climatic and regulatory conditions. Rather than a one-size-fits-all approach, each unit is configured at the factory to match the destination region's specific requirements — from extreme heat tolerance to refrigerant compliance and corrosion resistance.
Africa & Middle East: High-Ambient Temperature Resilience (T-Climate Class)
In regions where daytime ambient temperatures routinely exceed 45°C, standard refrigeration units struggle to maintain setpoint and suffer accelerated compressor wear. The xnair tropical configuration addresses this with an upsized condenser coil (30% larger surface area), a high-static-pressure condenser fan, and a compressor rated for continuous operation at 55°C ambient. The 100mm PU insulation — already exceeding the industry norm of 75mm — reduces heat ingress by approximately 27% compared to thinner panels, directly lowering compressor duty cycles and extending equipment lifespan. An integrated high-pressure cut-out and crankcase heater protect the compressor during overnight temperature swings common in desert climates.
Europe & North America: Regulatory Compliance & Low-GWP Refrigerants
For EU and North American buyers, refrigerant choice is increasingly governed by stringent environmental regulations. The standard R-449A refrigerant (GWP 1397) already complies with the EU F-Gas Regulation phase-down schedule through 2030. For customers requiring near-zero GWP, xnair offers an R-290 (propane, GWP 3) option with appropriately rated safety components, leak detection, and ventilation per EN 378. All electrical panels meet CE and UKCA marking requirements; UL-listed control panels are available for the North American market. The trailer chassis complies with EU type-approval (ECWVTA) for road-going trailers under 3,500 kg GVW.
Southeast Asia & South America: High-Humidity Corrosion Protection & Rough-Road Reinforcement
Coastal humidity, monsoonal rainfall, and unpaved rural roads present a dual challenge of corrosion and structural fatigue. xnair addresses this with a hot-dip galvanized trailer chassis (zinc coating ≥80 μm), stainless steel (SS304) door hinges, lock rods, and floor drain fittings. The external skin of the cold room body is finished with a UV-stabilized polyester coating over galvanized steel sheet, providing sacrificial corrosion protection. For rough-road markets, the chassis can be upgraded with reinforced leaf-spring suspension, uprated axle stubs, and 15-inch all-terrain tires. Internal tie-down rails and E-track flooring further secure cargo against vibration-induced shifting during transit over uneven terrain.
Engineering Details: Materials, Safety & Structural Integrity
Every structural component of the xnair trailer-mounted cold room is selected for thermal performance, food-grade safety, and long-term durability under transport conditions. The following details reflect the standard build specification:

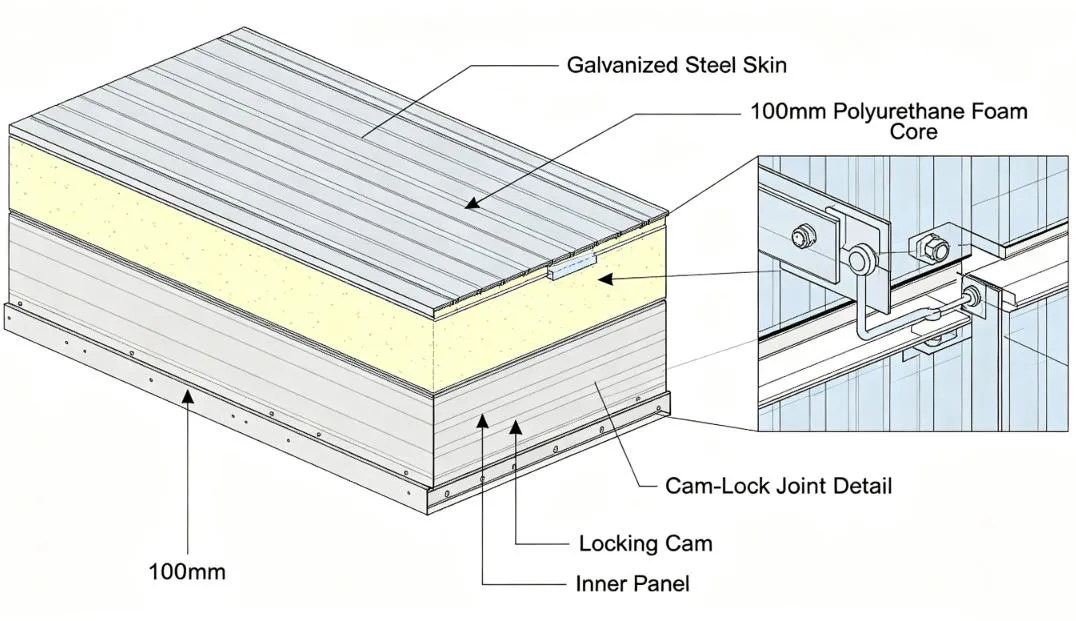

- Insulated Wall & Roof Panels: 100mm thick polyurethane (PU) foam core, sandwiched between 0.6mm galvanized steel skins. The PU foam is HCFC-free, cyclopentane-blown, with a density of 40±2 kg/m³ and thermal conductivity of 0.022 W/m·K. Panel joints are sealed with a dual-gasket cam-lock system achieving an air infiltration rate below 0.5 m³/h·m² at 50 Pa.
- Internal Wall Lining: Food-grade embossed aluminum (0.7mm) or optional SS304 stainless steel for pharmaceutical/meat applications. All internal corners are coved with radiused aluminum profiles to eliminate debris traps and facilitate wash-down cleaning.
- Floor Construction: 18mm marine-grade plywood core encapsulated within GRP (glass-reinforced plastic) skins, bonded to the PU insulation layer. The finished floor surface is anti-slip, impervious to water and mild acids, and rated for 800 kg/m² uniform load. An integrated 50mm stainless steel floor drain with P-trap is standard on all models.
- Door Assembly: Rear double-wing doors with 4-point locking mechanism (top, bottom, left, right cam locks). Door seals are EPDM rubber, snap-in replaceable type, rated for -40°C to +120°C. A 300mm × 400mm double-glazed observation window is optionally available in one door leaf.
- Refrigeration Unit Mounting: The condensing unit is mounted on a vibration-isolated subframe at the front of the trailer, with flexible refrigerant lines rated for 3,500 PSI burst pressure. The evaporator is ceiling-mounted inside the cold room with electric defrost and a condensate drain routed to the exterior.
- Electrical & Control System: Microprocessor-based digital temperature controller with 0.1°C resolution, auto-defrost programming, high/low temperature alarms, and an RS-485 Modbus port for remote monitoring integration. All wiring is loomed, labeled, and protected within IP65-rated junction boxes.
Visual Evidence: Application, Engineering, Logistics & Quality Control

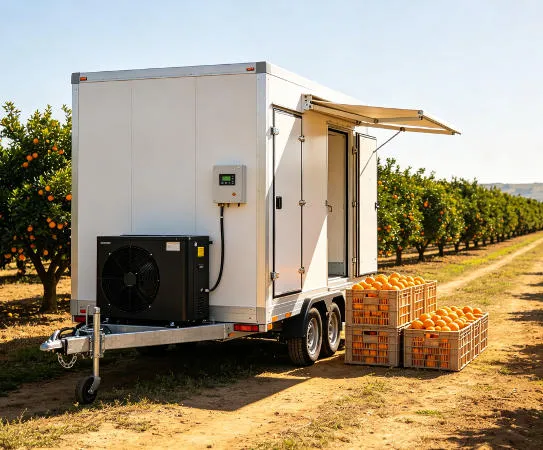

Field Application: Agriculture & Fresh Produce
Harvest-to-market cold chain begins at the farm gate. This xnair trailer-mounted cold room is photographed at a citrus orchard during peak summer harvest (ambient 38°C). The unit maintains +2°C internal temperature, immediately arresting field heat from freshly picked fruit. By bringing cold storage directly to the harvest point, post-harvest losses — which can exceed 25% in regions without cold chain infrastructure — are dramatically reduced. The trailer is hitched to a standard farm utility vehicle and repositioned as harvesting crews move through the orchard.

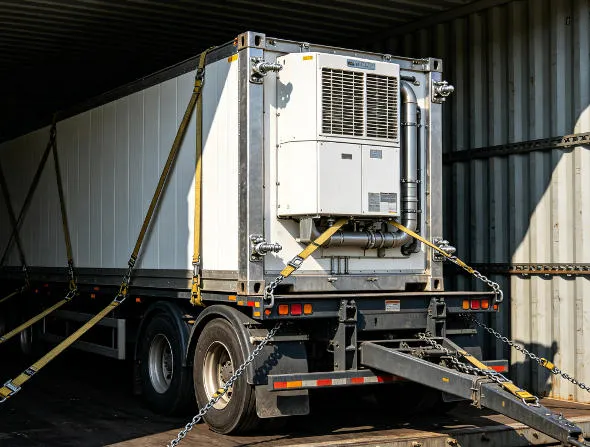

Logistics: Ocean Freight Reinforcement
International shipping exposes cargo to multidirectional g-forces, salt spray, and prolonged vibration. Each xnair trailer cold room is factory-prepared for containerized shipping with dedicated twist-lock anchor points on the chassis, heavy-duty lashing rings, and protective edge guards at all contact surfaces. The refrigeration unit is braced with a steel shipping frame to prevent relative movement during vessel rolling. All external surfaces receive a wax-based corrosion inhibitor coating prior to export packaging, easily removed upon delivery.
Frequently Asked Questions
Below are answers to the most common technical and commercial questions received from international cold chain buyers evaluating trailer-mounted cold storage solutions.
How long does it take to install the trailer-mounted cold room on site?
The xnair trailer-mounted cold storage room arrives pre-assembled, pre-wired, and factory-tested. On-site setup typically takes under 2 hours — park the trailer on level ground, engage the parking brake, connect to the power source (mains or diesel generator), and switch on the refrigeration unit. The cold room pulls down to target temperature within 45–90 minutes depending on ambient conditions. No civil works, crane lifting, or building permits are required.
What after-sales support and spare parts are available for international buyers?
xnair provides a 12-month warranty on the refrigeration unit and a 24-month warranty on the insulated body structure. We maintain a strategically stocked spare parts inventory covering compressors, controller boards, door seals, condenser fan motors, and expansion valves. Remote video diagnostics via WhatsApp/WeChat are available at no charge during the warranty period. For critical on-site repairs, we can dispatch an engineer under our international service agreements or coordinate with a local refrigeration contractor using our detailed service manuals.
Can the trailer cold room be customized for specific cargo types?
Yes. xnair offers extensive customization options: adjustable hanging rail systems with load-rated ceiling tracks for meat carcasses; slotted floor drains with increased gradient for wet produce; dual-temperature zone partitioning with independent evaporators; reinforced flooring rated to 1,200 kg/m² for pallet jack and forklift operation; specialized LED lighting (300 lux at floor level) for pharmaceutical picking; and multi-point temperature sensor arrays for validated cold chain data logging. Internal racking configurations can be factory-fitted to your exact logistic workflow.
What power source is required and how does the unit handle voltage fluctuations?
The unit accepts 220V single-phase / 380V three-phase mains power and can also be paired with a diesel generator (minimum 8 kVA recommended). A built-in automatic voltage regulator (AVR) handles input fluctuations from ±10% to ±25% depending on configuration, making the unit suitable for regions with unstable grid supply. The controller automatically shuts down the compressor if voltage falls outside the safe operating window and restarts once stable power is restored, protecting the compressor from brownout damage.
Related Cold Chain Solutions
Quality & Certifications: Factory Test Protocol & International Standards

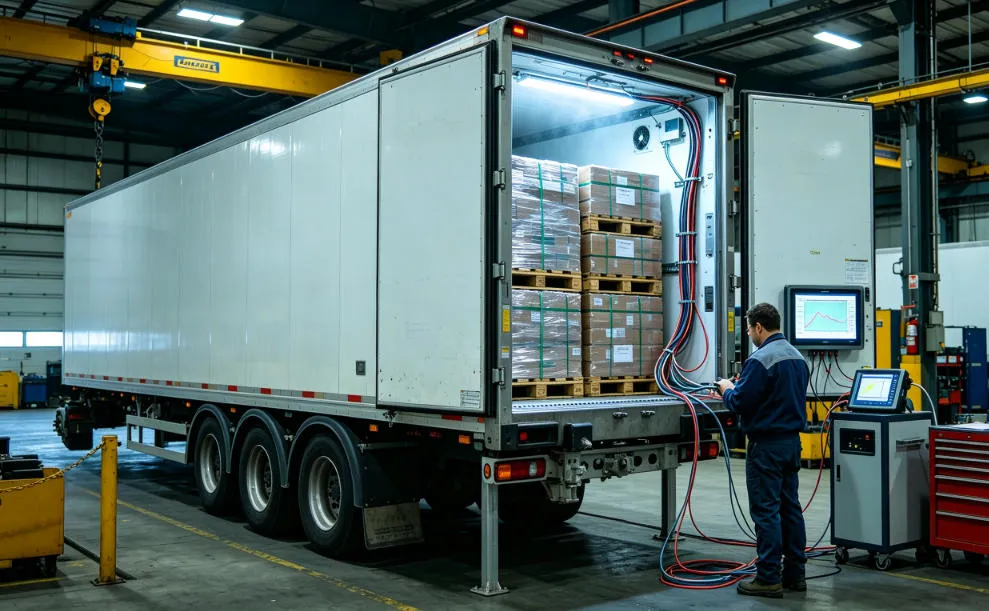

100% Factory Acceptance Testing — No Exceptions
Every xnair trailer-mounted cold storage room undergoes a mandatory full-load pull-down test before it leaves our Shanghai factory. Using a calibrated 12-channel data logger (traceable to NIST standards), we record internal temperature at 1-minute intervals from ambient (typically 25–35°C) down to -20°C. The unit must achieve setpoint within 90 minutes and maintain ±0.5°C stability for a continuous 4-hour hold period. Defrost cycles are triggered and verified. All test records are archived by serial number and available to buyers upon request.
Additional pre-shipment checks include: door seal compression test (smoke pen method), floor drain flow test, electrical insulation resistance test (>100 MΩ at 500V DC), and a 24-hour vacuum hold test on the refrigeration circuit. The trailer chassis undergoes a separate roadworthiness inspection including brake function, lighting compliance, and torque verification on all suspension fasteners to DIN 931/933 specifications.
Applicable International Standards & Certifications
For pharmaceutical cold chain applications, xnair can provide IQ/OQ/PQ documentation packages and coordinate with third-party validation services to meet WHO/PQS and GDP guidelines for vaccine storage and distribution.
