Plug-and-Play Cold Storage: Factory Pre-Assembled Units with -40°C to +10°C Temperature Range, Ready in 4 Hours

Technical Specifications

The following table presents the core engineering parameters that global B2B buyers evaluate when sourcing plug-and-play cold storage solutions. All values are based on standard configurations and can be customized to meet specific project requirements.

Global Adaptability: Engineered for Diverse Climates and Regulatory Standards

Every XNAIR plug-and-play cold storage unit is configured at the factory to match the specific environmental and regulatory conditions of its destination market. Below are the three primary regional adaptation profiles we support.

Africa & Middle East: High-Ambient Temperature Resilience (T-Class T3/T4)

In regions where daytime temperatures routinely exceed 45°C, the condensing unit must maintain rated cooling capacity under thermal stress. XNAIR equips units destined for these markets with oversized condensers, enhanced fin spacing (up to 3.2mm) to resist sand and dust clogging, and high-pressure cut-out switches calibrated for extreme suction conditions. The insulated panels use 150mm minimum PIR cores with a lambda value of ≤0.022 W/m·K, ensuring internal temperature stability even when the external gradient exceeds 55°C. Voltage stabilizers and phase-sequence protectors are integrated as standard for grids with frequent fluctuation.

Europe & North America: Regulatory Compliance & Low-GWP Refrigerants

For EU and North American markets, XNAIR cold storage units are pre-configured with low-GWP refrigerants such as R-449A (GWP 1,397) and R-452A, fully compliant with the EU F-Gas Regulation (EU 517/2014) phasedown schedule and U.S. EPA SNAP guidelines. Electrical panels are wired to IEC 60364 and NEC standards respectively, with optional UL 508A-listed control panels available for the U.S. market. All structural components meet EN 378 and ASHRAE 15 safety codes for refrigeration system design.

Southeast Asia & South America: High-Humidity Corrosion Resistance & Rugged Transport Reinforcement

In tropical and subtropical regions where relative humidity exceeds 85% year-round, corrosion is a primary failure mode. XNAIR addresses this with stainless steel (SUS304) interior wall panels, anti-corrosion coated evaporator fins with hydrophilic treatment, and heated door frames to prevent ice build-up and condensation. For last-mile delivery over unpaved or mountainous terrain, the base frame is reinforced with heavy-gauge galvanized steel channels and internal bracing, and the refrigeration unit is mounted on vibration-dampening isolators tested to withstand 3-axis shock loads equivalent to 15,000km of rough-road transport.

Engineering Details: Materials, Safety Construction, and Thermal Integrity

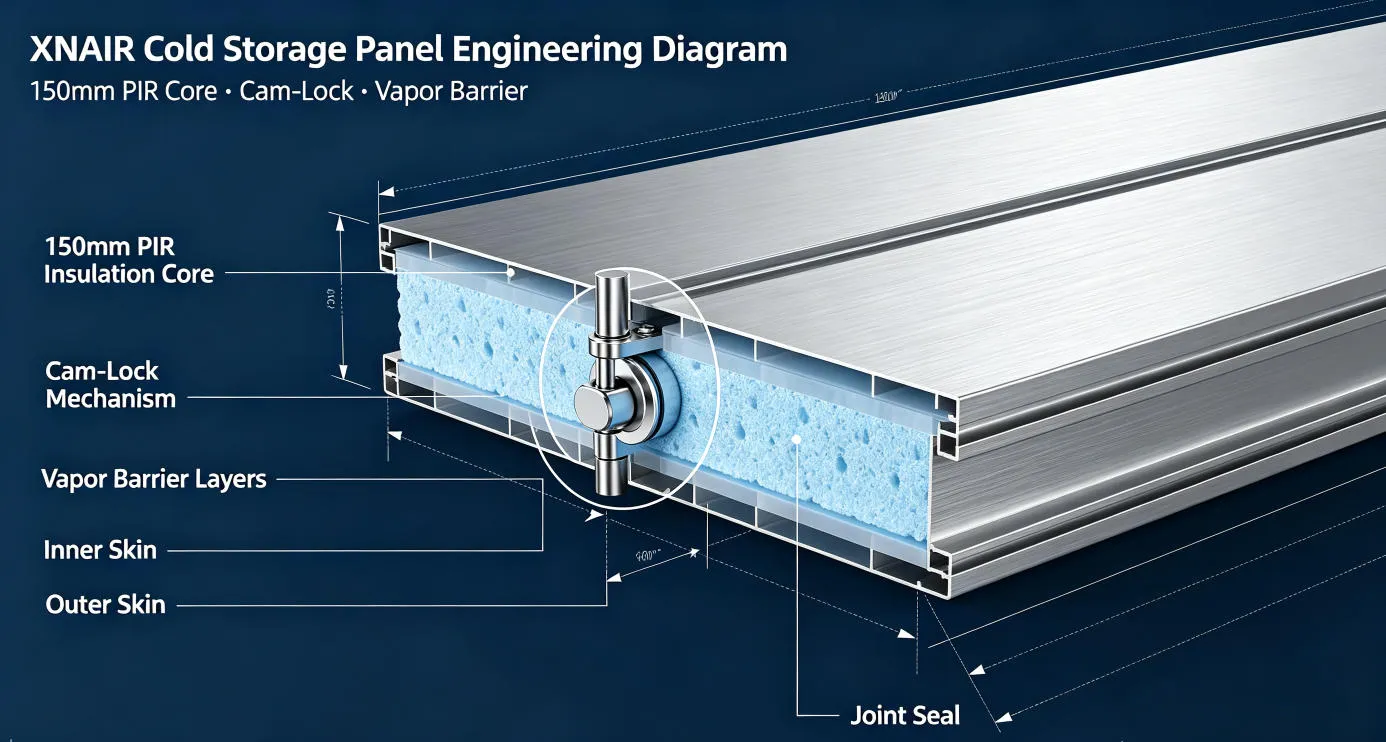

The structural and thermal performance of a cold storage unit depends on the integrity of its insulated envelope. XNAIR employs a continuous laminating process for panel production, ensuring uniform foam density and elimination of thermal bridges.

• Panel Core: Rigid polyurethane (PU) foam with 40±2 kg/m³ density, or fire-retardant polyisocyanurate (PIR) with 42±2 kg/m³ density. PIR panels achieve a B1 fire rating per DIN 4102, suitable for facilities with elevated fire safety requirements.
• Cam-Lock Assembly: Panels interconnect via a proprietary eccentric cam-lock mechanism embedded within the foam core. Each lock exerts 1.2kN of clamping force, creating an airtight seal with a thermal transmittance (U-value) as low as 0.18 W/m²·K for 150mm panels.
• Floor Load Capacity: The insulated floor slab is reinforced to support a distributed load of 2,500 kg/m², accommodating pallet jacks and forklift traffic. A 1.5mm chequer plate aluminum overlay provides slip resistance and protects the insulation from mechanical damage.
• Safety Relief: Each cold room is equipped with an internal pressure relief vent to prevent structural stress during rapid temperature changes. Doors include internal release mechanisms operable with less than 50N of force, meeting EN 179 emergency exit requirements.
• Drainage & Defrost: Automatic electric defrost cycles are managed by the digital controller, with heated drain lines preventing ice blockage in low-temperature applications. Condensate is routed through a P-trap to an external evaporator pan.

Application Scenarios: Proven Performance Across High-Volume Industries

XNAIR plug-and-play cold storage units serve four primary procurement sectors globally. Each scenario below illustrates how the system's design features directly address the operational demands of that industry.

Food Processing & Cold Chain Logistics

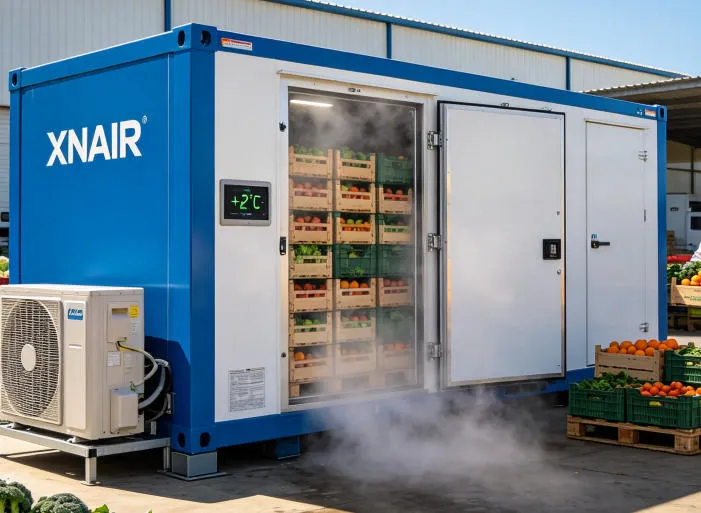

In fruit and vegetable packing facilities, post-harvest field heat must be removed within 90 minutes to preserve shelf life. XNAIR units with rapid pull-down capability achieve +2°C from ambient within 45 minutes at full load. For frozen meat and seafood processors, deep-freeze configurations at -25°C to -40°C maintain product core temperature below -18°C throughout storage, compliant with FSMA and Codex Alimentarius cold chain guidelines.

Pharmaceutical & Healthcare Cold Storage

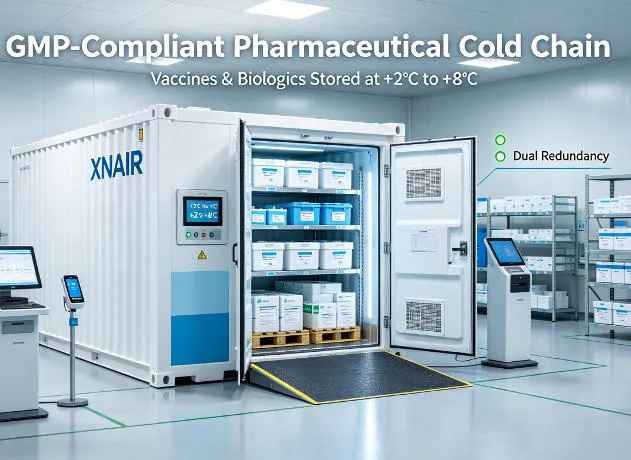

For pharmaceutical distributors and hospital central pharmacies, temperature excursions are unacceptable. XNAIR configures medical-grade units with dual refrigeration circuits (N+1 redundancy), 24/7 remote temperature monitoring with SMS alarm notifications, and data logging at 15-minute intervals for audit trail compliance. Temperature uniformity is maintained within ±0.5°C across all shelf levels, meeting WHO/PQS E006 prequalification standards for vaccine storage.

Agriculture & Farm Post-Harvest Storage

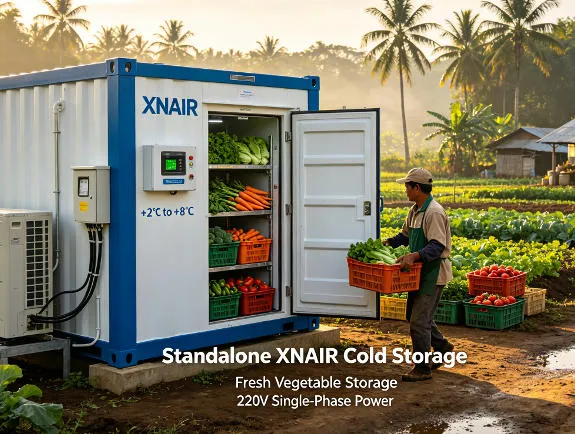

On rural farms where grid power may be unstable, XNAIR offers single-phase 220V configurations with soft-start compressors that limit inrush current to below 40A. The unit's insulated envelope maintains temperature for up to 6 hours during power outages, providing a critical buffer for harvest preservation. Modular design allows farmers to start with a 20m³ unit and expand incrementally as production volumes grow.

Hospitality & Food Service

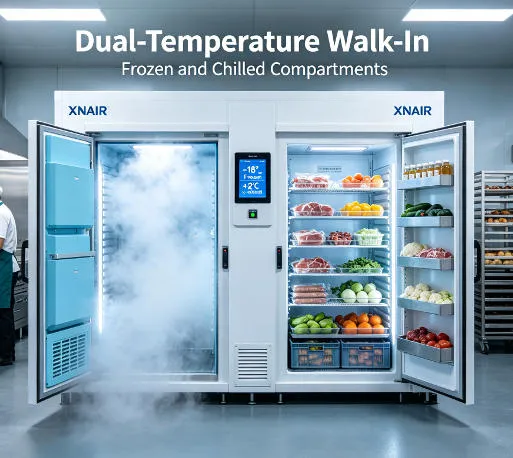

Hotels, cruise ships, and large catering operations benefit from XNAIR's dual-compartment configurations, where a single plug-and-play unit provides both frozen storage (-18°C) and chilled storage (+4°C) with independent temperature control. The low-noise axial fan design (≤62 dBA at 3 meters) and compact footprint make these units suitable for installation adjacent to kitchen prep areas without disrupting guest comfort.

Logistics & Packaging: Containerized Shipping with Heavy-Duty Reinforcement

Overseas transportation of pre-assembled cold storage units demands packaging that can withstand multi-modal handling — from factory forklift loading to ocean container transit and final truck delivery. XNAIR has developed a proprietary crating and bracing protocol refined over 10+ years of export experience.

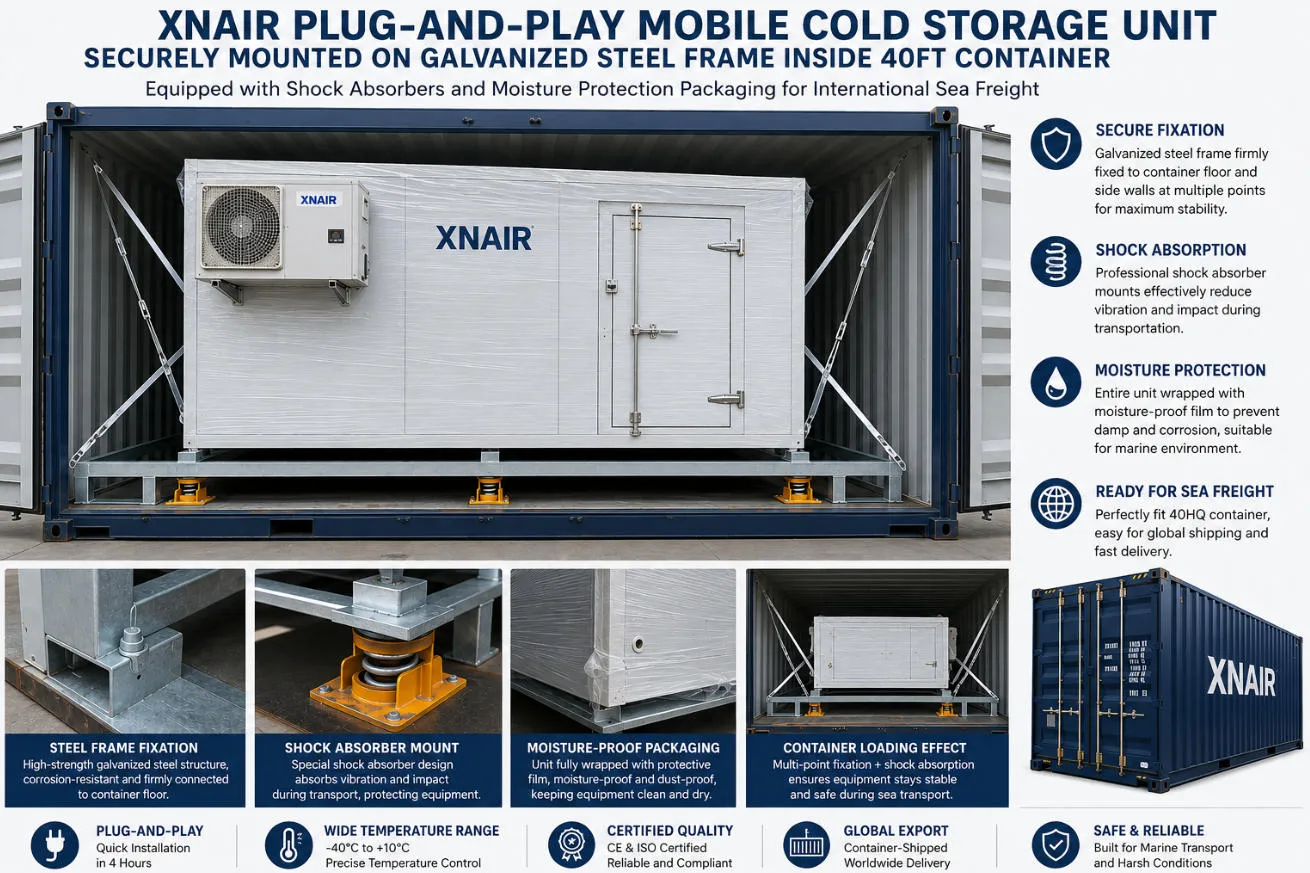

• Steel Cradle Base: Each unit is bolted to a hot-dip galvanized steel cradle with four twist-lock corner castings compatible with ISO container anchors, preventing any lateral shift during ocean transit.
• Vibration-Dampening Mounts: The compressor and condenser assembly is isolated on neoprene vibration pads that absorb low-frequency ship engine vibrations (tested per ASTM D4169 truck/sea profile).
• Moisture Barrier: All electrical panels and exposed metal surfaces receive a VCI (Volatile Corrosion Inhibitor) treatment and are sealed in heavy-gauge polyethylene with desiccant packs, ensuring zero corrosion upon arrival even after 45-day sea voyages.
• Fumigated Timber Crating: Exterior crating uses ISPM 15-compliant heat-treated timber, certified for international shipping without quarantine delays.

Quality Control: 100% Full-Load Factory Testing Before Shipment

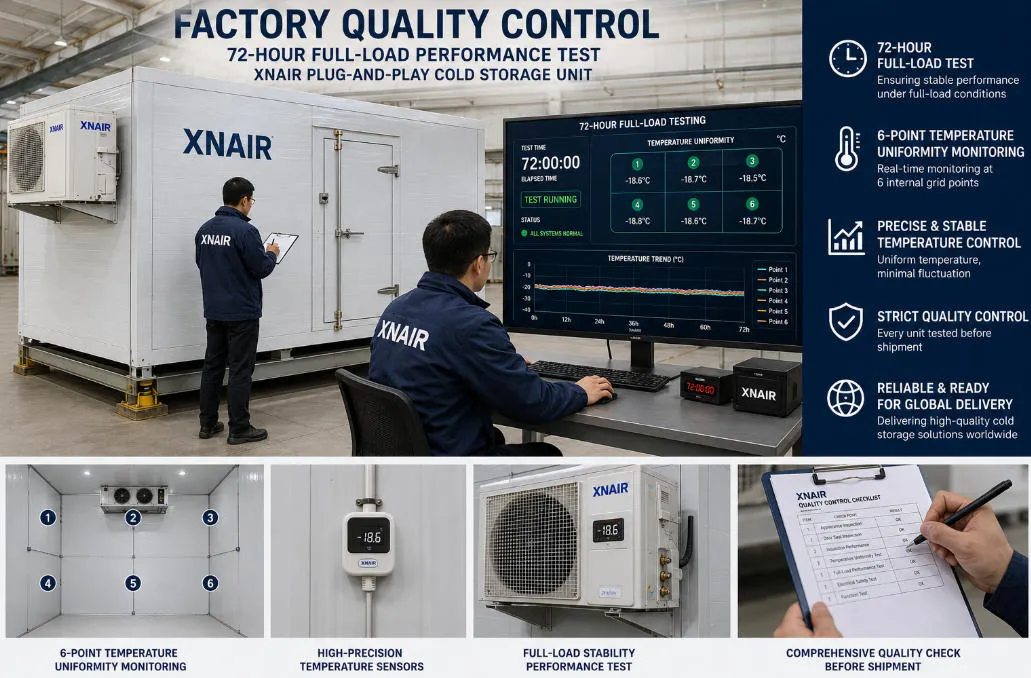

Every XNAIR plug-and-play cold storage unit undergoes a mandatory 72-hour full-load performance test in our factory before crating. This is not a sample-based audit — it is a 100% verification protocol applied to every single unit that leaves our production line.

• Pull-Down Test: The unit must cool from ambient temperature to its rated minimum setpoint within the specified time, with temperature sensors placed at 6 internal grid points to verify uniformity.
• Steady-State Endurance: Once at setpoint, the unit runs continuously for 48 hours under simulated full thermal load (using calibrated heat sources equivalent to the rated cooling capacity). Compressor cycling, defrost initiation, and door-frame heater operation are all monitored for correct sequencing.
• Electrical Safety Check: Insulation resistance (≥1MΩ at 500V DC), earth continuity (≤0.1Ω), and high-potential (Hi-Pot) testing at 1,500V AC for 60 seconds are performed on every control panel.
• Refrigerant Leak Detection: Each sealed system is pressurized with dry nitrogen to 30 bar and monitored for 24 hours; any pressure drop exceeding 0.1 bar triggers a full helium leak test and rework.
