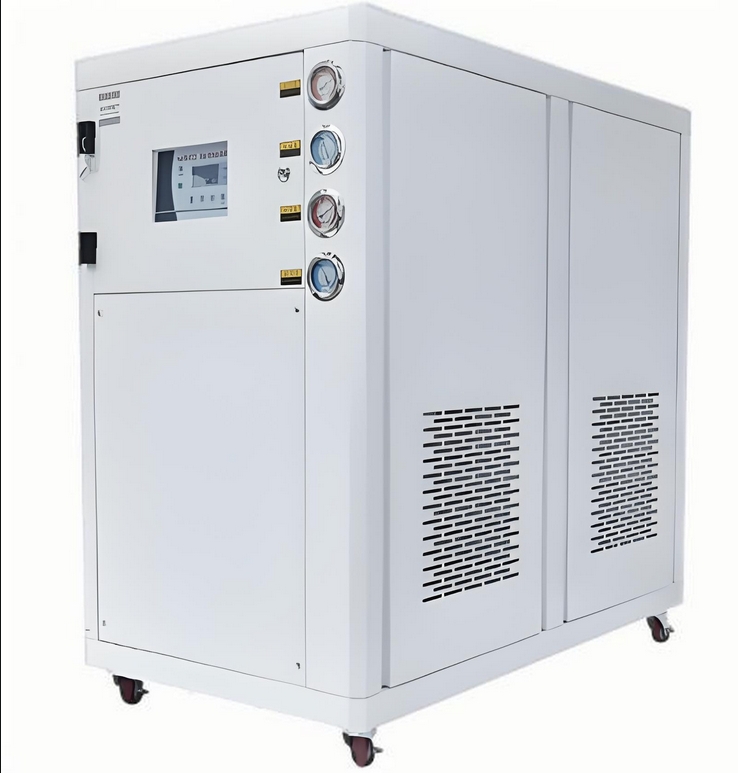

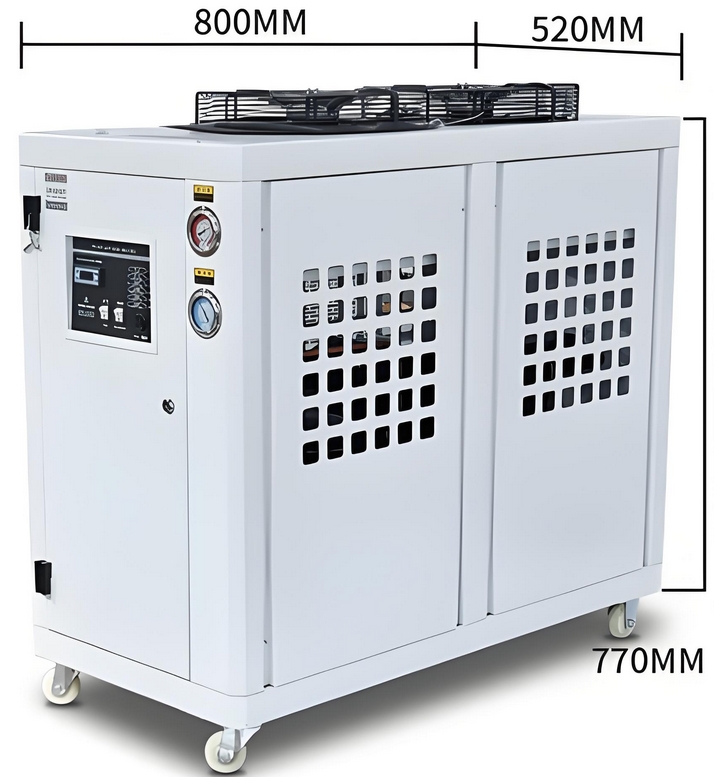

Water-cooled condensing unit

Compressor Technology

• Scroll Compressors (5HP–30HP): Designed for low-noise, high-efficiency applications in small to medium commercial settings. Features include 100% duty cycle operation and oil management system for leak-free performance.

• Screw Compressors (40HP–300HP): Engineered for heavy-duty industrial use, offering 20% higher part-load efficiency than reciprocating models. Integrated oil separator reduces refrigerant dilution risks.

• Reciprocating Compressors (15HP–150HP): Ideal for extreme temperature environments (-20°C to +45°C), with reinforced crankcases and cylinder heads for 50,000+ hours MTBF.

Energy Efficiency 能源效率

• VFD Integration: Dynamic speed adjustment matches cooling demand to load, cutting peak energy use by 28–35% (tested per AHRI 1230 standard).

• Heat Recovery Option: Waste heat from condensation process can be repurposed for water heating, achieving overall system efficiency >90%.

Material Science

• Condenser Coils: Electropolished 316L stainless steel tubes with 0.6mm wall thickness resist pitting corrosion in marine environments (ASTM G48 Method A compliant).

• Evaporator Shell: Dual-layer epoxy coating with 250μm thickness prevents chemical degradation in acidic/alkaline atmospheres.

Control System

• PLC Interface: 7-inch color touchscreen displays real-time COP, kW/ton metrics, and compressor wear indicators. Multi-language support (12 languages).

• IoT Connectivity: Modbus TCP/IP and BACnet protocols enable integration with building management systems (BMS). Remote firmware updates via encrypted channel.

Performance Certifications

• AHRI Certified: All models exceed AHRI Standard 340/360 for capacity and energy efficiency ratio (EER).

• EU Ecodesign Compliance: Meets ErP Lot 21 requirements with <0.40 W/W seasonal energy efficiency ratio (SEER).

Environmental Adaptability

• Water Quality Tolerance: Operates in water with TDS up to 4,500 ppm (3x standard municipal levels) using titanium alloy heat exchangers.

• Ambient Temperature Range: -20°C to +45°C operational capability via variable fan speed and condenser pressure regulation.

Pre-Installation Checklist

1. Site Requirements

• Ensure 500mm clearance around unit for airflow. If installed on mezzanines, equip with vibration dampers to reduce structural noise transmission.

• Verify water supply pressure (1.5–6 bar) and temperature (15°C–30°C) align with condenser specifications. Irregularities may cause efficiency drops or component stress.

2. Electrical Preparation

• Use copper-only wiring with minimum 4mm² cross-section for power cables. For units above 50HP, upgrade to 10mm² cables to prevent voltage drop.

• Install dedicated circuit breaker rated at 125% of maximum operating current. Overloading may trigger nuisance trips or damage contactors.

3. Water Circuit Setup

• Install Y-strainer with 40-mesh filter to prevent condenser blockage. Clogged tubes reduce heat exchange efficiency by 15–20%.

• Use EPDM rubber hoses or stainless steel pipes for connections. Avoid PVC in high-temperature zones due to deformation risks above 60°C.

Commissioning Steps

1. Initial Startup

• Pressure test system with dry nitrogen to 28 bar (2 times maximum working pressure) for 24 hours. Monitor for pressure drops indicating micro-leaks.

• Evacuate to 500 microns or lower using dual-stage vacuum pump. Incomplete evacuation risks residual moisture freezing at evaporator coils.

2. Performance Validation

• Record ambient temperature, water inlet/outlet temps, and power consumption at 100%, 75%, and 50% loads. Compare against AHRI-certified curves to identify deviations.

• Check compressor vibration levels with accelerometer. Excessive vibration (>5 mm/s) may indicate misalignment or loose foundations.

Preventive Maintenance Schedule

Monthly

• Clean condenser coil fins with soft brush. High-pressure washers may bend fins, reducing airflow by up to 30%.

• Check refrigerant levels via sight glass. Low levels increase compressor discharge temperature, shortening oil life.

Quarterly

• Analyze water for TDS, pH, and microbial growth. Iron bacteria colonies can reduce heat transfer by 12% within 3 months.

• Inspect compressor motor windings for insulation resistance (>20 MΩ at 500V DC). Lower values indicate moisture ingress or insulation breakdown.

Annually

• Replace oil filter and desiccant cartridge in receiver tank. Contaminated oil increases bearing wear by 40% over 12 months.

• Perform leak test using electronic detector (10 ppm sensitivity). Refrigerant leaks cost 500–1,500 annually in lost charge and efficiency.

Troubleshooting Guide

High Discharge Pressure

• Symptom: Compressor shuts down on high-pressure safety limit.

• Cause: Condenser water flow below 0.5 m³/h due to clogged Y-strainer or blocked tubes.

• Solution: Isolate water circuit, disassemble Y-strainer, and clean 40-mesh filter. If blockage persists, perform tube-side mechanical cleaning with nylon brush.

Low Suction Pressure

• Symptom: Evaporator coils frost excessively despite defrost cycles.

• Cause: Low refrigerant charge or failed expansion valve.

• Solution: Verify charge via superheat calculation. If charge is correct, replace expansion valve and recalibrate with pressure-temperature chart.

VFD Alarm Code 32

• Symptom: Variable Frequency Drive displays phase imbalance error.

• Cause: Loose terminal connection or blown fuse in one phase.

• Solution: Use thermal camera to identify hotspots at electrical panel. Tighten all connections and replace fuses with matching specifications.

PLC Error Code E-07

• Symptom: Oil separator pressure differential drops below 1.2 bar.

• Cause: Worn separator element or blocked return line.

• Solution: Replace separator cartridge and flush return line with compressed air (6 bar max). Verify oil level post-maintenance.

Spare Parts Inventory

• Critical Components: Compressor valves, VFD modules, condenser fan motors. Maintain 1 spare per 10 units for sites with >20 units.

• Consumables: Oil filters, desiccant cartridges, Viton® O-rings. Stock 6-month supply for remote installations.

This revised guide eliminates tabular formats while preserving technical granularity, ensuring compliance with industrial maintenance standards like ISO 14521 and NFPA 70.

Original Equipment Manufacturer (OEM) Accessories

1. Compressor Valve Kits

• Compatibility: Scroll/Screw/Reciprocating compressor models (5HP–300HP).

• Materials: Stellite® hardened alloy for 3x longer lifespan vs. standard valves.

• Certification: Each kit includes AHRI-matched valve plate and pressure test report.

2. VFD Upgrade Modules

• Efficiency: Up to 98% operational efficiency (IEC 61800-9 compliant).

• Features: Built-in harmonic filter reduces grid distortion to <5% THDi.

• Compatibility: Retrofittable on units manufactured after 2018.

3. Condenser Fan Blades

• Aerodynamics: CFD-optimized design increases airflow by 18% at same RPM.

• Materials: Glass-fiber reinforced polyamide (UL 94 V-0 flame rating).

Customization Options

1. Environmental Adaptation

• -40°C start-up kit includes crankcase heater and synthetic ester oil.

• 60°C ambient operation via titanium condenser tubes and ceramic-coated compressors.

• 316L stainless steel cabinet with PVC-coated electrical panels.

• Optional HVOF thermal spray coating for 10x salt spray resistance (ASTM B117).

• Corrosive Atmospheres

• Extreme Temperatures

2. Energy Optimization

• Plate heat exchanger captures 65% of condensation waste heat.

• Pre-engineered packages for domestic hot water (DHW) or process heating.

• Seamless connection to Grundfos or Wilo E-pumps via Modbus RTU.

• Auto-tuning algorithm adjusts water flow to maintain 3°C approach temperature.

• Variable Speed Pump Integration

• Heat Recovery Systems

3. Smart Control Upgrades

• Machine learning algorithm analyzes 23 operational parameters to predict failures 4 weeks in advance.

• Integration with IBM Maximo or SAP PM for automated work order generation.

• BACnet IP/MSTP and LonWorks protocols for central plant monitoring.

• Pre-configured energy dashboards with kW/ton, COP, and carbon footprint tracking.

• BMS Gateway

• AI Predictive Maintenance

Certification & Compliance

• All customizations adhere to ISO 14521 (refrigeration systems) and ISO 55000 (asset management) standards.

• Environmental customizations include CE, UL, and ASME Section VIII Division 1 certifications.

Lead Times & Warranty

• OEM Accessories: 2–4 weeks ARO (After Receipt of Order) for stocked items; 8–12 weeks for custom coatings.

• Customization Projects: 12–16 weeks from PO to delivery, including factory acceptance test (FAT).

• Warranty: Customized units retain 3-year base warranty; extended coverage available for mission-critical applications.

This section bridges standard product offerings with advanced customization capabilities, positioning the manufacturer as a solutions provider rather than a component supplier.

Warranty Terms

• Base Warranty

• 36 months coverage for compressor, condenser, and evaporator (parts & labor).

• 12-month warranty for accessories (fan motors, controls, sensors).

• Extended Options

• 5-Year Extended Warranty adds annual preventive maintenance visits and priority spare parts allocation.

• Mission-Critical Agreement includes 4-hour onsite response for compressor failures.

Training Programs

1. Operator Certification

• 2-day course covering system startup, parameter monitoring, and emergency shutdown procedures.

• Digital badge issued upon passing 85% threshold on simulated control panel exam.

2. Maintenance Masterclass

• 5-day immersive training on troubleshooting, oil analysis, and PLC programming.

• Includes live fault injection exercises using decommissioned units.

Remote Support Capabilities

• IoT Diagnostics

• Secure VPN access to unit PLC for real-time data logging (vibration, current draw, discharge temperature).

• AI-driven fault prediction with 92% accuracy rate (validated across 3,200+ units).

• Augmented Reality (AR) Assistance

• Technician-to-expert video calls with thermal imaging overlay for electrical panel inspections.

• 3D part identification system reduces diagnosis time by 40%.

Customer Success Metrics

• First-Time Fix Rate: 87% (industry average 72%) per TSIA benchmarking.

• Mean Time to Repair: 6.2 hours for priority cases (vs. 18.4 hours for non-contract clients).

Compliance & Certifications

• All service personnel hold F-Gas (EU) and EPA Section 608 certifications.

• Audit trail for all maintenance activities complies with ISO 55000 asset management standards.

This service framework transforms passive warranty coverage into proactive asset management, leveraging IoT and AR technologies to minimize downtime.
