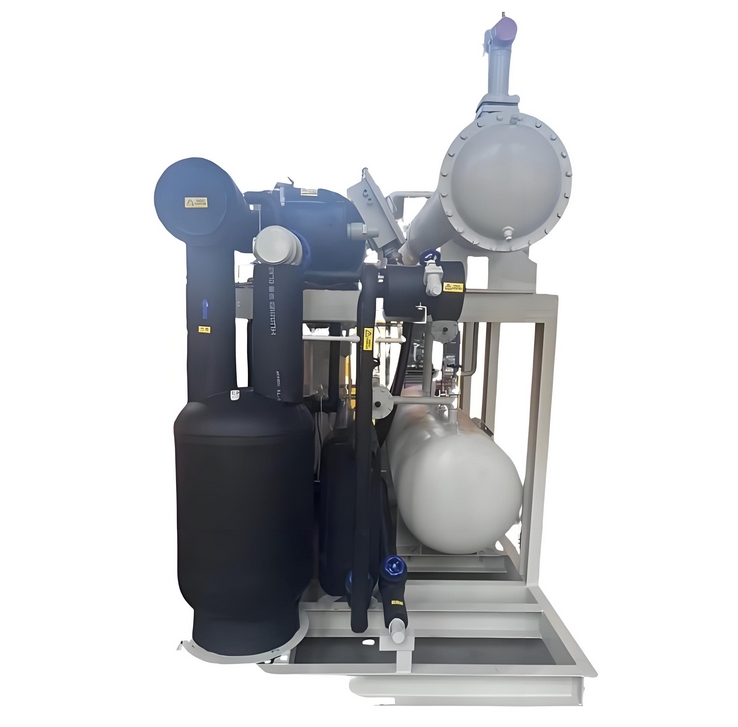

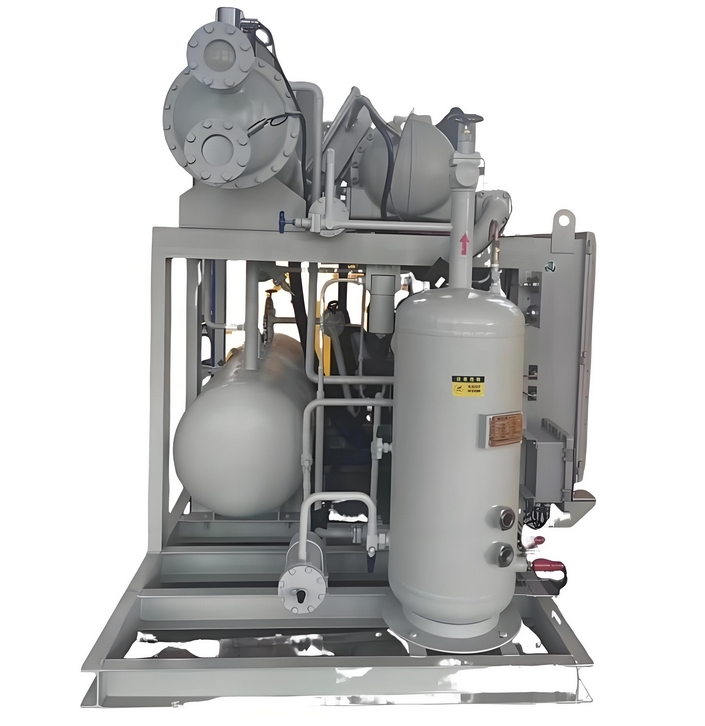

The Screw Water-Cooled Condensing Unit is a
high-efficiency cooling solution tailored for industrial and commercial
applications. Powered by a twin-screw rotary compressor, it delivers
stable performance with minimal energy consumption. Key features
include:
Advanced Cooling Technology
Utilizes R134a/R513A refrigerants (GWP <600) to meet global
environmental regulations while maintaining superior thermal
conductivity.
Variable-frequency drive (VFD) adjusts cooling output in real-time,
reducing energy waste by up to 30% compared to traditional units.
Robust Construction
Double-layer stainless steel housing with anti-corrosion coating
ensures durability in harsh environments (e.g., marine or chemical
plants).
Modular design allows seamless integration with existing HVAC systems or standalone operation.
Smart Control & Connectivity
PLC-based touchscreen interface with fault self-diagnosis and alarm history logging.
IoT-enabled for remote access via mobile/PC, enabling predictive maintenance and real-time performance tracking.
Wide Application Range
Ideal for large-scale projects: food processing plants, data centers, breweries, and commercial cold storage.
Operates efficiently in temperatures from -10°C to 45°C, adapting to desert, tropical, or cold-storage climates.
Safety & Compliance
Complies with AHRI, CE, and UL standards, ensuring global market eligibility.
Built-in safety protections: high/low-pressure switches, anti-freeze sensors, and overload relays.
Cost-Saving Design
Low noise output (≤75 dB(A)) reduces site-specific noise mitigation costs.
Long service intervals (8,000+ hours between maintenance) minimize downtime.
Why Choose This Unit?
Energy Efficiency: IPLV rating exceeds 5.0, cutting operational costs by 25% over 5 years.
Scalability: Customizable capacities (50kW–1,500kW) to match evolving business needs.
Global Support: 24/7 technical assistance and 2-year warranty (parts replacement included).
The Screw Water-Cooled Condensing Unit integrates twin-screw compressor technology with intelligent controls
and eco-friendly design to deliver industrial-grade cooling performance.
Key technical advantages include:
Advanced Twin-Screw Compressor
5:6 asymmetric tooth profile minimizes internal leakage, enhancing volumetric efficiency.
Slide valve capacity control enables 25–100% stepless adjustment for fluctuating loads.
40,000+ hour MTBF with oil pressure and exhaust temperature safeguards.
Smart PLC Control System
12-layer protection (water break, anti-freeze, phase loss, etc.) with Modbus/BACnet compatibility.
Remote diagnostics via IoT platform, supporting BAS integration.
Automatic fault logging and self-diagnosis reduce downtime.
Eco-Conscious Engineering
R513A refrigerant (GWP=631) as standard; R1234ze (GWP<10) optional for EU markets.
Economizer boosts efficiency by 15%, achieving IPLV 5.2 under partial loads.
VFD technology cuts energy use by 30% at full load, exceeding ASHRAE 90.1.
Robust Operational Range
Kobe steel inner-grooved copper tubes in evaporator/condenser (20% heat transfer gain).
1.6MPa water pressure rating for condenser, 1.0MPa for evaporator.
-10°C to 45°C ambient operation with anti-freeze electric heaters.
Pre-Installation Checklist
Dedicated machinery room required with foundation load capacity 150% of unit weight.
Maintain 800mm+ service clearance; avoid piping above compressor.
Install target flow switch on cooling water line with interlock to control panel.
Piping Best Practices
Electrical Standards
Main power supply tolerance: ±10% voltage fluctuation, <4Ω ground resistance.
Separate control wiring from power cables to prevent interference.
8-hour pre-startup warm-up required for compressor oil heating.
Maintenance Schedule
Quarterly condenser coil cleaning; annual dryer filter replacement.
Monthly refrigerant level check; leak detection for abnormal pressures.
Drain water system completely during extended shutdowns.
Standard Accessories
Oil separator (≥99.7% efficiency)
Economizer for enhanced low-temp performance
Filter-drier (2.5kg moisture capacity)
Solenoid valve + sight glass for refrigerant monitoring
Optional Upgrades
Electronic expansion valve (±0.5°C precision)
4G/LoRa remote monitoring module
Standby compressor system (twin-unit configurations)
Customization Options
Voltage: 380–480V/50–60Hz
Brine compatibility: Glycol solutions (-20°C operation)
Corrosion resistance: 316L stainless steel for marine environments
Noise reduction: Acoustic enclosure (<65dB(A))
