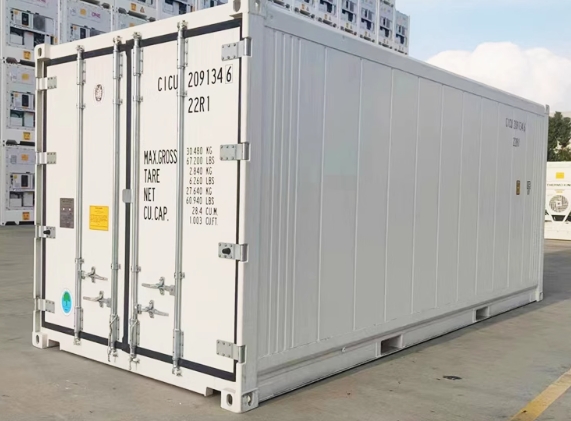

Portable refrigerated containers offer plug-and-play cold chain
solutions. Integrating industrial-grade refrigeration and
seismic-resistant construction, they deploy as -20°C freezers or 4°C
chillers within 48 hours. CSC-certified and HACCP-compliant, they suit
disaster response, events, and transshipment hubs.
Disaster Relief: Strategic reserves for vaccines/blood
Event Logistics: Catering hubs for sports/music festivals
Transshipment: Intermodal cold storage at ports/airports
Selling Points
✅ Rapid Deployment: Fully operational in 48 hours
✅ Ruggedized: IP65 rated for dust/water/corrosion
✅ Smart Monitoring: Remote temp/energy tracking
Advantages
Compliance: WHO PQS-approved for vaccine storage
Energy Efficiency: 40% less power vs. conventional cold rooms
TCO: 20-year lifespan with low maintenance
🔹 Free Consultation: 1-on-1 design with cold chain experts
🔹 Case Studies: Real-world applications from leading enterprises

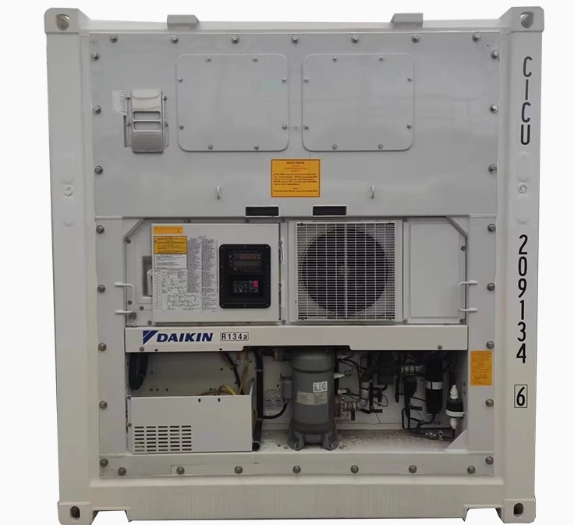

Refrigeration System
Dual-redundant compressors: Auto-switchover maintains 80% capacity during faults
Electronic expansion valves: ±0.1°C precision, <0.3s response
Phase-change storage: 12h cold retention post-power loss

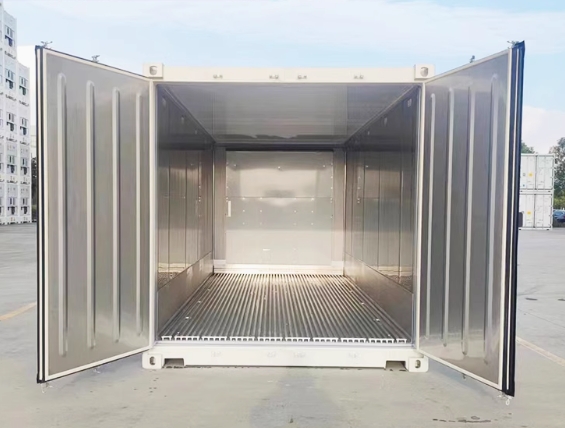

Insulation
Vacuum Insulation Panels: 0.002W/(m·K) with aerogel
Sealing: Inflatable gaskets, ≤0.05m³/h@50Pa airtightness
Corrosion Resistance: Hot-dip galvanized frame, 2000h salt spray resistance
Temperature Control
Triple-redundant sensors: Primary + backup + manual override
Remote Shutdown: Emergency stop via APP
Emergency Mode: Auto-switches to energy-saving cycle during outages
Installation Steps
Foundation Prep: Pour 200mm C30 concrete pad (≤2mm/m levelness)
Container Placement: Lift with 40-ton crane, ≤50mm tolerance
Commissioning: Charge refrigerant, validate ±1.5°C uniformity
Safety Test: 72h simulated full-load operation with core temp logging
Daily Maintenance
Weekly Cleaning: Wipe surfaces with pH-neutral cleaner
Monthly Check: Data logger storage (maintain 50% buffer)
Quarterly Service: Replace air filters, check refrigerant purity (≥99.8%)
Annual Maintenance: Pressure tests and leak checks by authorized tech
Standard Accessories
Genset Adapter: 30kW diesel compatible (optional)
Racking System: Adjustable shelves (500kg/tier load)
Explosion-Proof Lighting: LED fixtures (IP65, -20°C rated)
Customization Options
Dimensions: Extended 12m/20m or split-body configurations
Add-Ons: CO₂ backup system for carbonated beverages
Certifications: ATEX Zone 2 compliance
Aesthetics: Corporate branding with RAL color paint
Service Commitment
Warranty: 5 years for compressors, 2 years overall
Response: 4h phone diagnosis, 48h on-site (China)
Training: ISO 22000-certified operator courses
Support Coverage
Remote Access: TeamViewer for authorized technicians
Spare Parts: Provincial hubs with 24h delivery for critical components
Preventive Maintenance: Annual deep service (pressure tests, leak checks, sensor calibration)
Precautions
Extreme cold (-30°C) requires optional low-temp kit
Overseas service requires 72h advance booking and customs docs
Post-warranty repairs charged at published material rates
