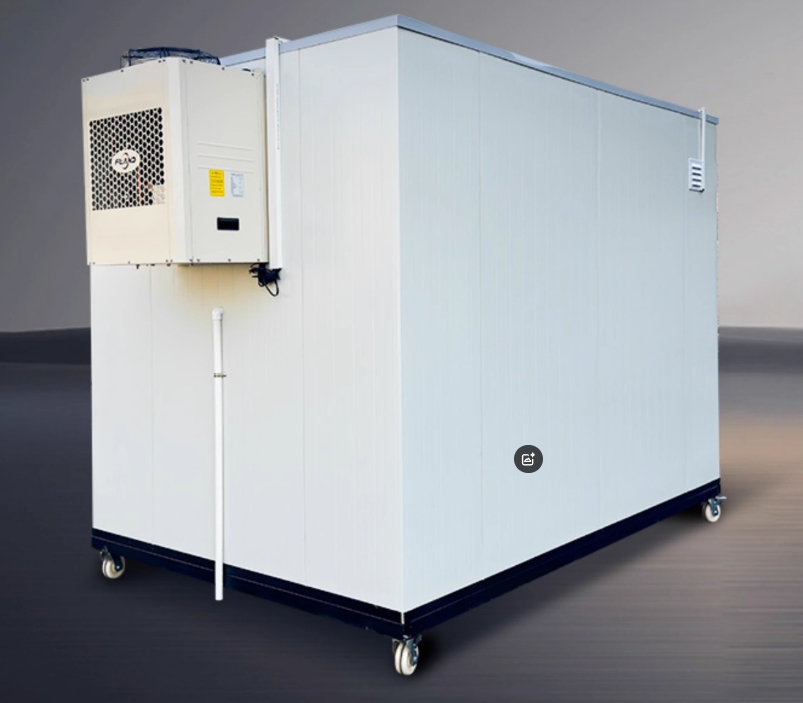

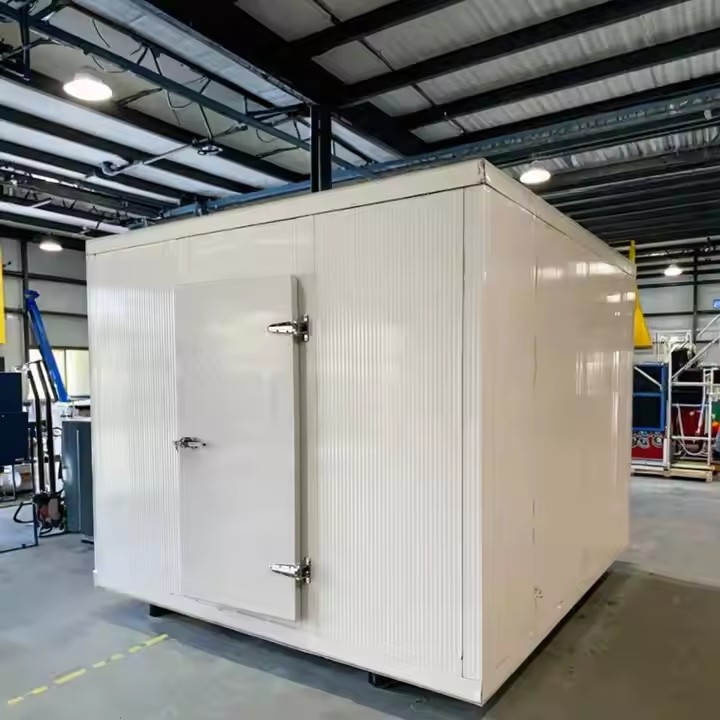

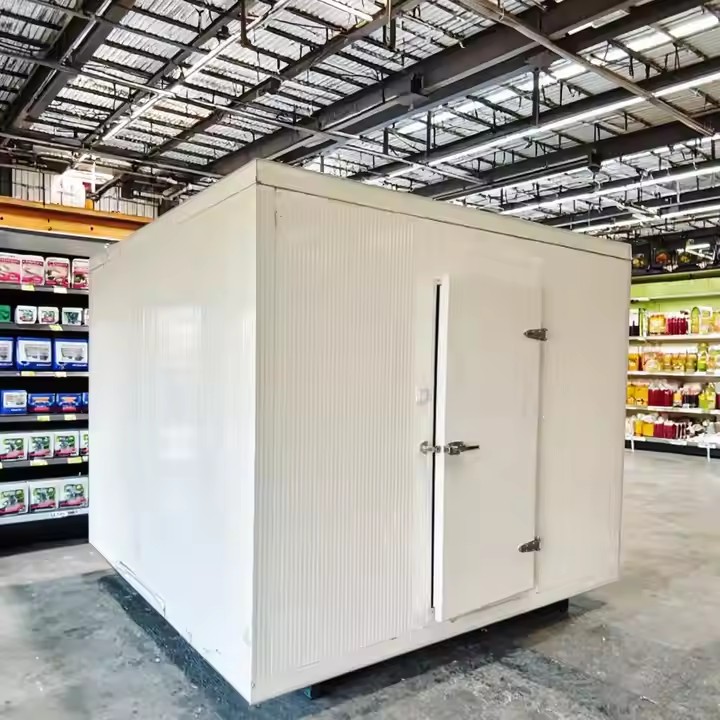

The Portable Cold Storage Room is a pre-engineered, modular cold storage solution designed for rapid deployment in commercial and industrial environments. Engineered with 100mm high-density polyurethane (PUF) insulation panels and a food-grade stainless-steel interior, this unit delivers exceptional energy efficiency and durability. Its plug-and-play design allows seamless integration into warehouses, restaurants, medical facilities, and disaster relief operations. The unit supports dual operating modes—refrigeration (0°C to +8°C) and freezing (-20°C to 0°C)—with a temperature recovery time of ≤15 minutes after door openings, ensuring minimal fluctuation.
Key Features:
Modular Scalability: Panels interlock via cam-lock mechanisms, enabling customizable capacities from 10m³ to 100m³.
Precision Temperature Control: Digital controller with ±1°C accuracy and automatic defrost cycles.
Robust Construction: Reinforced steel frame with anti-skid aluminum tread plate flooring (1,500 kg/m² load capacity).
Eco-Friendly Options: R290 refrigerant compatibility reduces carbon footprint by up to 65%.
Applications:
Food distribution centers for meat, dairy, and frozen goods.
Pharmaceutical storage for vaccines and temperature-sensitive medications.
Industrial use for chemicals, flowers, and event perishables.
robust steel frame ensures structural integrity, designed to withstand the rigors of frequent relocation. Advanced digital controllers provide intuitive temperature management, allowing for easy adjustment and monitoring, often with remote access capabilities. Safety features include pressure relief valves, emergency door releases, and alarms for temperature excursions, ensuring both product integrity and operator safety.

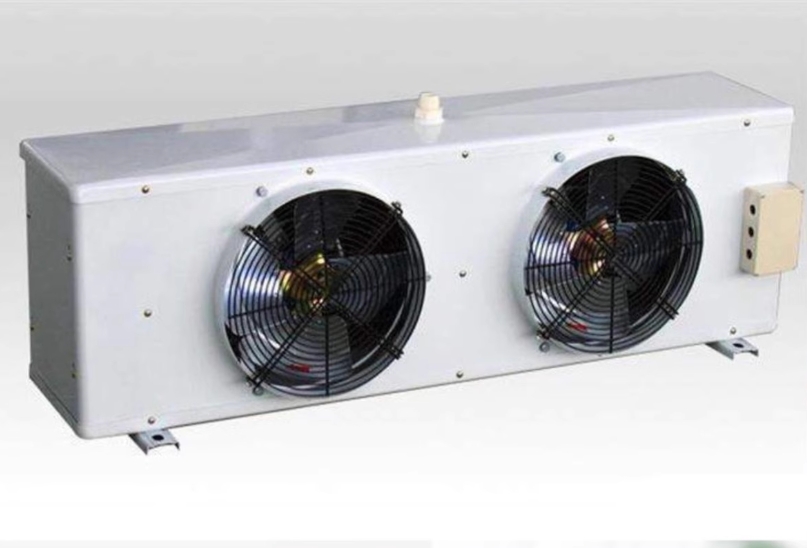

Our Portable Cold Storage Room integrates cutting-edge refrigeration technology with superior structural design to deliver unmatched performance. At its core, each unit features a high-efficiency compressor and a meticulously engineered evaporator coil, ensuring rapid cooling and precise temperature maintenance within a wide range of -25°C to +5°C.
We utilize R404a or R507 refrigerants, aligning with global environmental standards, offering powerful cooling with minimal environmental impact. The walls, ceiling, and floor are constructed with 100-150mm thick high-density polyurethane (PU) insulation panels, which are precisely interlocked to create a seamless, airtight seal, effectively preventing thermal bridges. This achieves exceptional thermal efficiency and significantly reduces energy consumption.
Our robust electrical systems are designed for reliability, accommodating both 220V and 380V power supplies, with options for 50Hz or 60Hz to suit various international grids. A robust steel frame ensures structural integrity, designed to withstand the rigors of frequent relocation. Advanced digital controllers provide intuitive temperature management, allowing for easy adjustment and monitoring, often with remote access capabilities. Safety features include pressure relief valves, emergency door releases, and alarms for temperature excursions, ensuring both product integrity and operator safety.
Installation Steps:
Site Preparation: Ensure a level concrete floor with a slope ≤2°. Clear a 500mm gap around the unit for ventilation.
Assembly: Connect modular panels using cam-lock fasteners. A 2-person team can complete installation in 4–8 hours.
Electrical Connection: Hardwire to a dedicated 32A circuit breaker. Ground the unit per local electrical codes.
Maintenance Schedule:
Daily: Wipe condenser coils with a soft brush; inspect door gaskets for gaps.
Monthly: Replace air filters; test emergency stop functionality.
Annually: Engage a certified technician for refrigerant leak test and compressor inspection.
Troubleshooting:
E1 Alarm (High Temperature): Check for open doors or faulty gaskets.
E3 Alarm (Low Power Supply): Verify voltage stability and circuit breaker status.
Optional Add-Ons:
Shelving Systems: 304 stainless-steel racks with 150 kg/shelf capacity and adjustable height.
Smart Monitoring: Wi-Fi-enabled temperature/humidity logger with SMS/email alerts.
Emergency Backup: 4-hour UPS system to prevent spoilage during power outages.
Customization Options:
Color: RAL color matching for exterior panels (e.g., corporate branding).
Voltage: Dual-voltage (220V/380V) compatibility for international deployments.
Explosion-Proof: ATEX Zone 2 certification for hazardous material storage.
Our commitment to your satisfaction extends far beyond the point of sale for your Portable Cold Storage Room. We pride ourselves on providing comprehensive after-sales service and unwavering support to ensure your unit operates flawlessly throughout its lifespan.
Our support system includes:
Dedicated Support Team: Available to assist with any technical queries, operational guidance, or troubleshooting needs.
Multi-Channel Support: Including phone, email, and online resources, ensuring you can reach us conveniently.
Global Technical Network: Access to a global network of certified technicians for on-site repairs and preventative maintenance.
Genuine Parts Supply: Our parts department maintains a readily available inventory of genuine replacement parts, minimizing downtime.
Flexible Service Contracts: Offering extended warranty options, providing peace of mind and protecting your investment.
Regular Software Updates: Provided for digital control systems to enhance performance and introduce new features.
Our goal is to forge a long-term partnership, offering continuous support and expert advice to ensure your portable cold storage room consistently meets your operational demands.
