Function & Role:

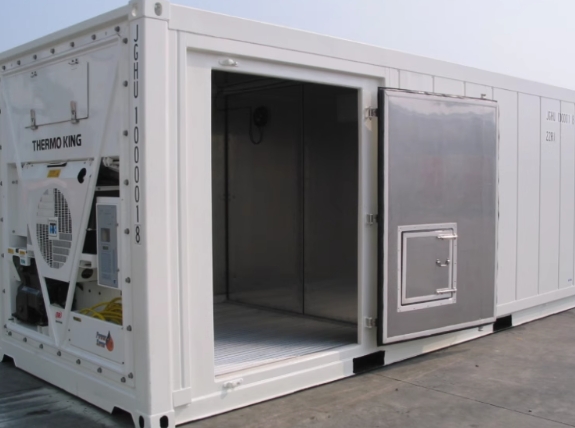

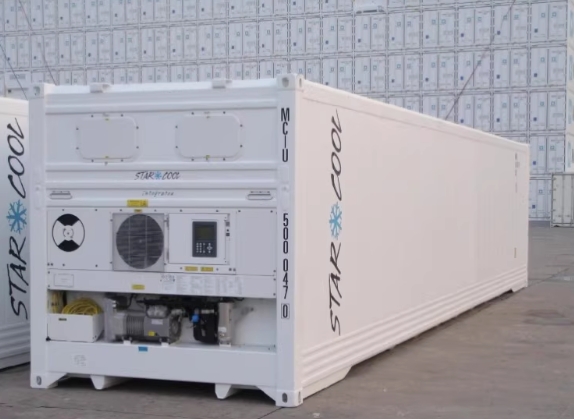

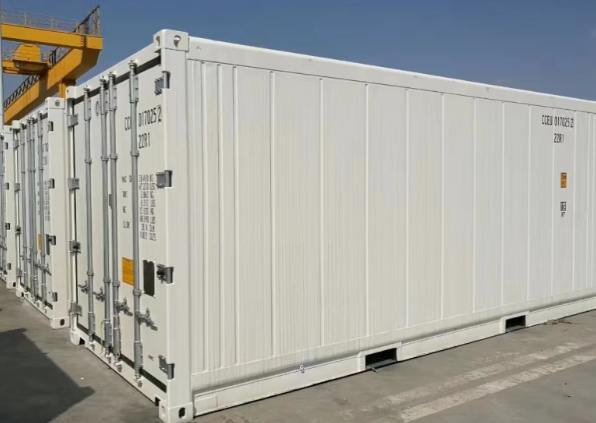

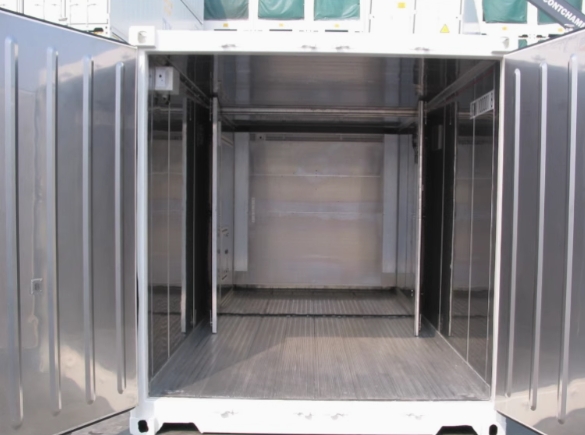

Marine refrigerated containers are specialized units designed to
maintain stable temperature-controlled environments for perishable cargo
during extended maritime voyages. Built with heavy-duty
corrosion-resistant steel and multi-layer insulation, they withstand
saltwater corrosion, extreme temperatures, and violent motion at sea.
Key Features & Advantages:
Precision Cooling: Dual-mode (compressor + eutectic) systems ensure ±1°C temperature stability.
Energy Optimization: Advanced variable-frequency drives reduce power consumption by up to 30%.
Remote Monitoring: 4G/LTE-enabled controllers send real-time alerts for temperature deviations.
Regulatory Compliance: Meets SOLAS, ISPS, and IMDG Code requirements for dangerous goods transport.
"Protect your high-value cargo with military-grade reliability. Contact our experts now!"
Temperature Range: -35°C to +40°C (-31°F to +104°F)
Cooling Capacity: 15,000–30,000 BTU/hr (adjustable via digital controller)
Insulation: 120mm vacuum panel (R-value ≥8.2/inch)
Power Supply: 440V/60Hz 3-phase (emergency bypass for 220V single-phase)
Material: 316L marine-grade stainless steel, FDA-approved interior coating
Noise Level: ≤62 dB(A) at 1m (quiet mode available)
Weight: 3.8–6.2 tons (tare weight)
Certifications: E-mark, CCS, and USCG approval for international voyages
Installation Checklist:
Secure container to deck using 12mm galvanized lashing rods (minimum 8 points).
Connect power cables to ship’s distribution board via IP67 waterproof connectors.
Calibrate temperature sensors using NIST-traceable reference thermometer.
Maintenance Protocol:
Daily: Verify door seals for ice buildup; clear condenser intake grilles.
Weekly: Lubricate hinges with marine-grade grease; test emergency defrost function.
Quarterly: Replace desiccant cartridges; inspect compressor mounting bolts.
Annually: Pressure-test refrigerant lines (400 PSI max); renew anode rods.
Standard Inclusions:
6x anti-slip cargo securing tracks with laser-cut anchor points.
1x explosion-proof LED interior light (IP69K rated).
1x stainless steel documentation holder with waterproof pouches.
Custom Solutions:
Arctic Package: -40°C capable with electric defrost heaters.
Gas Detection: ATEX-certified system for CO2/O2 monitoring in controlled atmosphere units.
Track & Trace: GPS + RFID asset tracking with 5-year battery life.
Warranty Coverage:
Service Network:
24/7 technical hotline staffed by certified marine refrigeration engineers.
Port-based service centers in 38 key hubs (e.g., Singapore, Rotterdam, Shanghai).
Spare Parts Logistics:
Training Resources:
